Asheville Raised Square Custom Cabinet Doors

Asheville Raised Square Custom Cabinet Doors

Choose a Wood type to Get Started
Wood Specie
Paint Grade Hard Maple
Red Oak
Hard Maple
MDF (Medium Density Fiberboard)

Enter Your Measurements

Please enter a width of at least 7 1/2 inches.
Please enter a width less than 48 inches.
Please enter a height of at least 10 1/2 inches.
Please enter a height less than 83 inches.
base cost: $0.00

If you're looking to upgrade your cabinetry but want to save on a new installation, you can use our Asheville raised panel replacement cabinet doors for a transformation at a fraction of the cost. At Cabinet Doors 'N' More, you're in charge of the building process. We manufacture replacement cabinet doors using your measurements and finish preferences for the ideal fit.

  • 3/4" Thickness
  • Solid wood frame and insert panel
  • 2 1/4" framing rails and stiles
  • Traditional 1/4" outside edge profile
  • Medium Density Fiberboard (MDF) cabinet doors feature a MDF frame and insert panel
  • White primer option available on paint grade maple and MDF cabinet doors (applied to both sides of cabinet door)
  • MDF and Paint Grade Hard Maple cabinet doors are for priming and painting only
  • Matching cabinet Drawer Fronts are available
  • Width: Minimum 7 1/2" - Maximum 48"
  • Height: Minimum: 10 1/2" - Maximum: 83"
  • All hinge bore holes are drilled for any standard European concealed hinges
  • Hinge boring (left or right) is available 3" from top and bottom of cabinet doors (no custom hinge boring available)
  • Hinge boring will always be on the height side of the cabinet door
  • Cabinet doors over 26" wide or 48" high will be made with two panels unless specified. Please let us know in the order notes section in the shopping cart
  • Cabinet doors with a height of 42" or less will receive two hinge bores
  • Cabinet doors with a height of 42 1/16" - 72" will receive three hinge bores
  • Cabinet doors with a height of 72 1/16" - 83" will receive four hinge bores
  • Manufactured in the USA
Edge Profile
Framing Bead
Panel Profile



We offer the option to add hinge boring for European concealed hinges. Spacing is predetermined and based on door size. Use our measuring guide for help getting your final numbers.

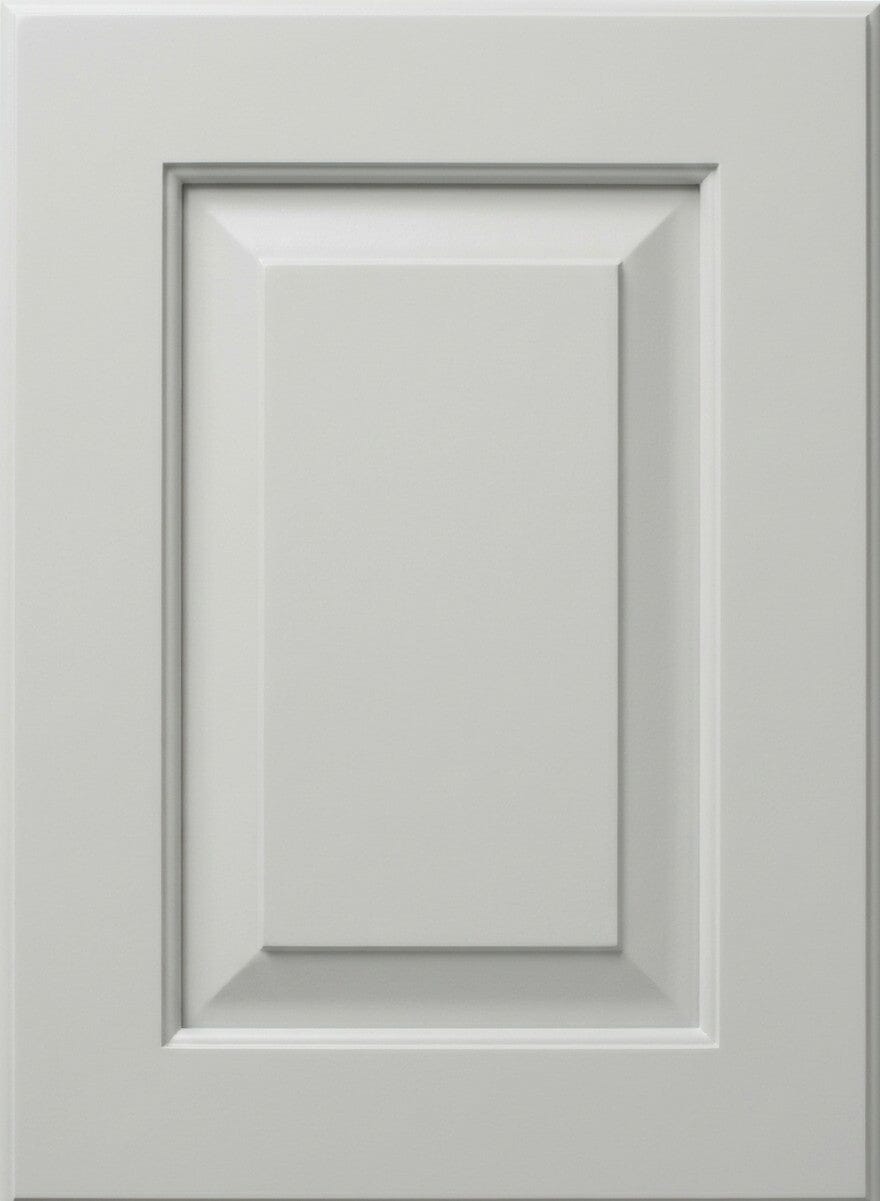

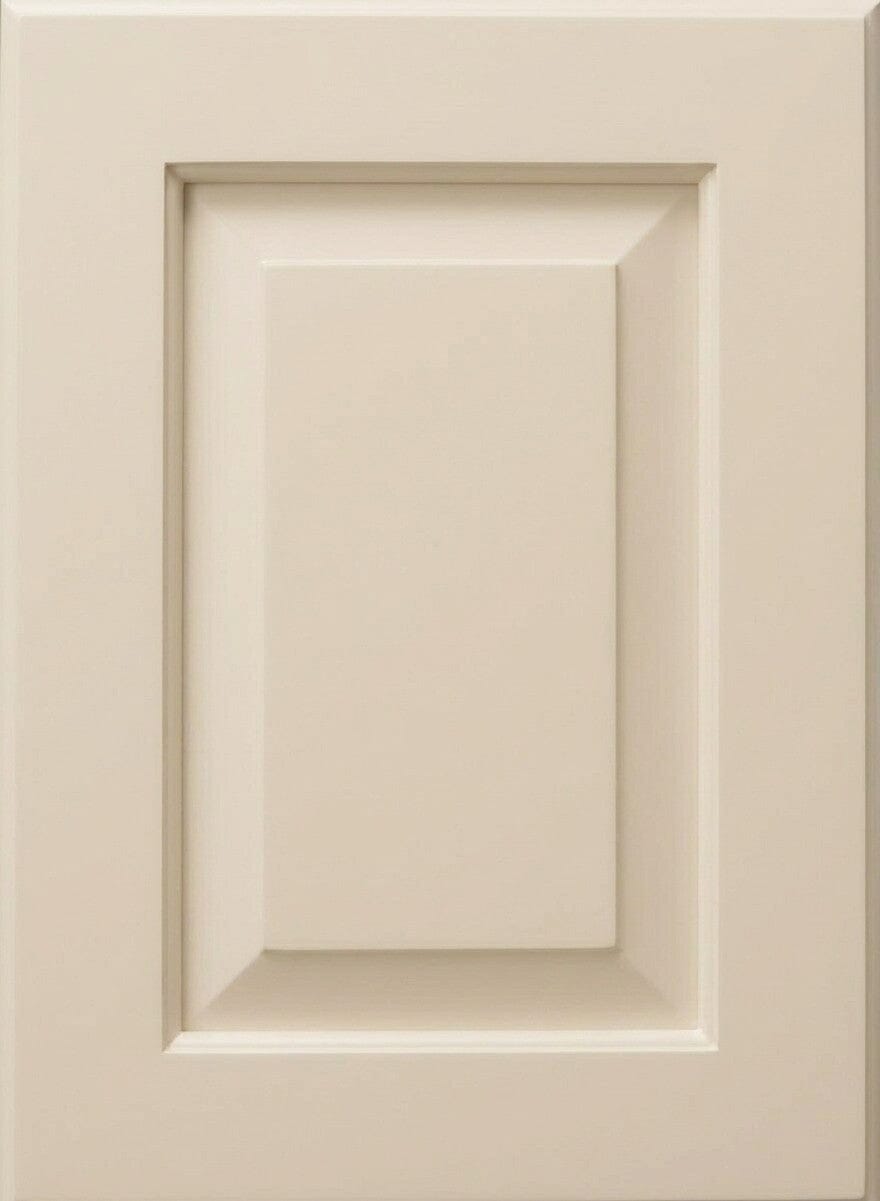

Asheville raised panel replacement cabinet doors are made from solid wood. These cabinet doors have a classic raised-panel design that provides a bold, traditional appearance. You can install them in existing cabinet systems throughout the home for a like-new look that complements any home décor.

Different woods have different appearances. We offer several to select from to get the look you want, including red oak, hard maple, paint grade hard maple, and cherry. If you would prefer to paint these cabinet doors, we offer the option of building your replacement cabinet doors using solid paint-grade hard maple or medium-density fiberboard (MDF). These two materials are perfect for painting. Doors made using these materials are available as an option with a white primer applied at the factory, helping you save time on your project and get a better finish.


Order your custom replacement cabinet doors by choosing your materials, entering your measurements, selecting your quantity, and adding options you want to include. If your cabinets have drawers, we offer Asheville drawer fronts you can customize to match. All orders ship free in approximately 15 business days regardless of size. Orders over $750and shipments of any size placed by military members or qualified veterans get an automatic 10% off.

Need more information? We're here to help! Contact us online or call 844-915-1150 for assistance.


Price for this product

MDF $33.12 per square foot
Hard Maple $46.08 per square foot
Paint Grade Hard Maple $40.32 per square foot
Red Oak $40.32 per square foot
Cherry $46.08 per square foot
