Wilmington Shaker Custom Cabinet Doors

Wilmington Shaker Custom Cabinet Doors

Choose a Wood type to Get Started
Wood Specie
Hard Maple
Paint Grade Hard Maple
Red Oak
MDF (Medium Density Fiberboard)

Enter Your Measurements

Please enter a width of at least 7 inches.
Please enter a width less than 48 inches.
Please enter a height of at least 9 inches.
Please enter a height less than 83 inches.
base cost: $0.00


At Cabinet Doors 'N' More, we deliver high-quality kitchen cabinet doors that will serve your home for years to come. We craft our wood Shaker custom cabinet doors with the highest quality materials. Thanks to their unfinished design, they give you the ability to match the color of your existing cabinetry to make your house or remodeling project feel more like home. You can order a sample now to find out if this door design is right for your kitchen.

  • 3/4" Thickness
  • 2 1/4" Framing Rails and Stiles
  • Paint Grade Hard Maple cabinet doors feature a hard maple frame with a 1/4" MDF insert panel (Note: The insert panel changed from plywood veneer to MDF on 9/1/21)
  • Red Oak, Hard Maple and Cherry cabinet doors feature a solid wood frame with a matching 1/4" plywood veneer insert panel
  • Medium Density Fiberboard (MDF) cabinet doors feature a MDF frame and 1/4" MDF insert panel
  • Paint Grade Hard Maple and MDF cabinet doors are for priming and painting only
  • White primer option now available on Wilmington shaker cabinet doors (applied to both sides of cabinet door)
  • Measure width and height to closest 1/16"
  • Width: Minimum 7" - Maximum 48"
  • Height: Minimum: 8" - Maximum: 83"
  • Doors over 26" wide or 48" high will be made with two panels unless specified. Please let us know in the order notes section in the shopping cart.
  • Doors with a height of 42" or less will receive two hinge bores.
  • Doors with a height of 42 1/16"-72" will receive three hinge bores.
  • Doors with a height of 72 1/16" or larger will receive four hinge bores.
  • Hinge boring will always be on the height side of the cabinet door

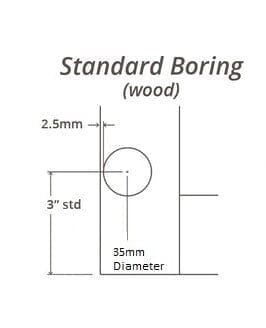

  • All hinge bore holes are drilled 3" from the top and bottom of the door for any standard European concealed hinge

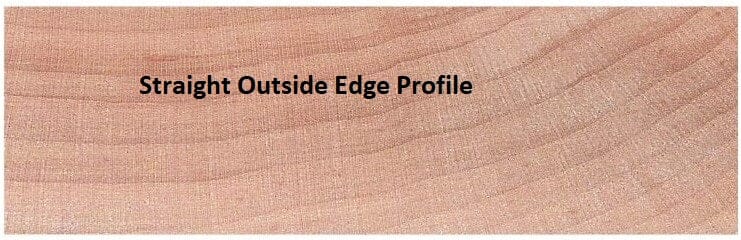

Edge Profile
Framing Bead



The Shaker-style door design is the ideal option for modern kitchens. Its simplicity makes it a popular choice for homeowners and contractors who are looking for replacement doors.

Our hinge bores are designed for standard European concealed hinges. We offer multiple options based on cabinet door size:

  • Two hinge bores for door heights below 42 inches
  • Three hinge bores for heights between 42-1/16 and 72 inches
  • Four hinge bores for heights greater than 72-1/16 inches

In addition to our other features and benefits, we provide a white primer for MDF and paint-grade hard maple shaker cabinet doors.


If you need to replace an old set of cabinet doors, we'll be glad to tailor an option that meets your size specifications and fits the aesthetics of your kitchen. You can start by choosing your own wood species and size measurements online. We even have a section on our website dedicated to cabinet door measurements if you need help choosing the right size.

All orders ship in approximately 15 business days.

We'll provide a durable, cost-effective solution for your kitchen remodeling project. Order today or contact us online to learn more.


Price for this product

  • MDF $28.80 per square foot
  • Hard Maple $41.76 per square foot
  • Paint Grade Hard Maple $36.00 per square foot
  • Red Oak $36.00 per square foot
  • Cherry $41.76 per square foot

Customer Reviews

Based on 11 reviews Write a review


Ask a Question
  • Hello, I'm looking for Shaker style cabinet doors that are painted white, but not thermofoil, is this an option? Thanks!


    We're sorry but we do not offer painted cabinet doors...we do offer unfinished cabinet doors in shaker that can be painted using our paint grade hard maple or MDF.



    CDNM Customer Support

  • Are the hinges included with the door purchase?

    We're sorry....we do not offer or sell hinges with our cabinet doors.

    CDNM Customer Support

  • I need a drawer front that is 8.5 X 5.5, but it won't let me order one less that 10". Do you do custom ones?

    Our minimum width for shaker cabinet drawer fronts is 10" and height is 3 3/8".

    CDNM Customer Support

  • looking for a white wood shaker painted do you have one

    We do not offer painted cabinet doors but do offer paint grade hard maple and MDF (Medium Density Fiberboard) cabinet doors for priming and painting. These two types of doors are a perfect choice if you want to paint.

    CDNM Customer Support

  • Do you make kitchen cabinet doors with the ability to have glass panels inserted in center of doors?

    Yes; We offer wood and white rtf mullion Cabinet Doors in both standard and shaker edge profiles.

    CDNM Customer Support

  • How do I determine hinged left vs. hinged right?

    Good question...for any Cabinet Doors that have a flat or square panel profile you can choose either left or right for a door hinge based on the fact that you can turn the cabinet door either way (upside down) and you can use for a left or right hand hinge installation. For cabinet doors that have an Arch or Cathedral you have to specify either left or right hinge.


    CDNM Customer Support

  • Does your doors comes with hardware?

    I'm assuming you mean door hinges...No...CDNM does not offer door hinges at this time.

    CDNM can bore your Cabinet Doors for hinges if you select that option.
    CDNM Customer Support

  • Do you offer a door that we can paint? or are these easy to paint without preparation

    We recommend two wood species that we offer when wanting to paint your replacement Cabinet Doors - paint grade hard maple or MDF (Medium Density Fiberboard as the best options. All of our solid wood cabinet door styles come in paint grade hard maple and most of custom cabinet doors come in MDF. Check our our blog on tips for priming and paiting your kitchen cabinets https://cabinetsndoors-dev.myshopify.com/admin/blogs/105626637/articles/28846620737 CDNM Customer Support
