Naples Raised Square Custom Cabinet Doors

Naples Raised Square Custom Cabinet Doors

Choose a Wood type to Get Started
Wood Specie
White RTF
Antique White RTF
Stone Grey RTF
Smoke Grey RTF
MDF (Medium Density Fiberboard)
Enter Your Measurements

Please enter a width of at least 7 1/2 inches.
Please enter a width less than 48 inches.
Please enter a height of at least 7 1/2 inches.
Please enter a height less than 83 inches.
base cost: $0.00

Naples raised square custom cabinet doors have a traditional design with rounded-off corner panel profile and features a durable rigid thermofoil (RTF) finish. Rigid thermofoil cabinet doors are seamless, smooth to the touch and have color consistency throughout. All thermofoil cabinet doors are very easy to maintain and clean.

All of our replacement cabinet doors are custom made to your specifications so that your Do-It-Yourself (DIY) kitchen or bath remodeling project turns out as you envisioned. Make sure you measure correctly and visit our "How to measure cabinet doors" page to find out more information. Matching cabinet Drawer Fronts are available.

We now offer the Naples square raised cabinet door style in three new finishes: Antique White, Stone Grey and Smoke Grey. Note: Due to the nature of photography, lighting and screen color settings we cannot guarantee that the color you are seeing on your screen will match the cabinet component exactly. Color swatches are available for all RTF colors so before starting a larger project, please ask us to mail you a color swatch. The backside of all Naples cabinet doors have a white melamine finish.


  • Standard 3/4" thickness
  • 2 1/8" framing stiles and rails

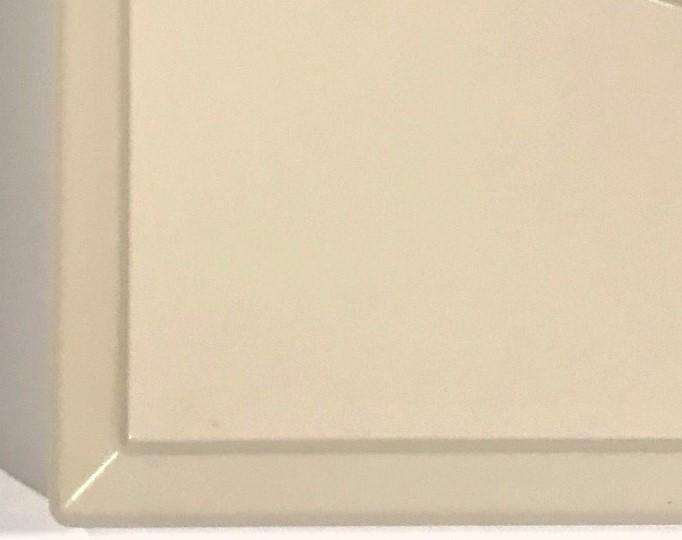

  • Rounded-off corner panel profile

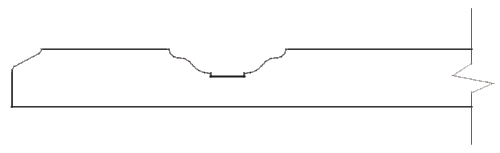

  • Traditional 3/8" outside edge profile
  • Durable MDF core construction
  • Rigid Thermofoil (RTF) finishes available - White, Antique White, Stone Grey and Smoke Grey
  • Naples MDF cabinet doors are for priming and painting only
  • White Primer option not available on this MDF cabinet door style
  • Back side of MDF cabinet door has a white laminate finish
  • Measure Width and Height to closest 1/16"
  • Width: Minimum 7 1/2" - Maximum 48"
  • Height: Minimum: 7 1/2" - Maximum: 83"
  • Cabinet doors with a height of 36" or less will receive two hinge bores (Doors that are 8" - 13" high have hinge boring 2" from top and bottom of door; all other sizes are 3" standard from top and bottom.)
  • Cabinet doors with a height of 36" - 60" will receive three hinge bores
  • Cabinet doors with a height of 60" - 83" will receive four hinge bores

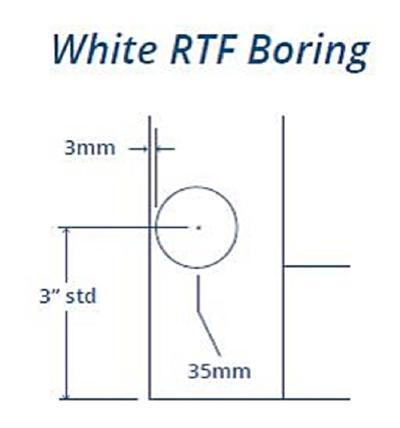

  • All hinge bore holes are drilled for any standard European concealed hinges
  • Hinge boring (left or right) is 3" from top and bottom of cabinet doors (no custom hinge boring available)
  • Manufactured in the USA

Customer Reviews

Based on 15 reviews Write a review


Ask a Question
  • What does 2 1/8 framing stiles and rails mean?

    The outer part of the cabinet door are referred to as stiles and rails...All cabinet doors have 2 stiles and 2 rails. The stiles refer to the vertical part of the cabinet door and the rails make up the horizontal part. Rail and stile width can vary depending on the cabinet door style. 2 1/8" refers the width of the rail or stile.

    We hope this helps

    CDNM Customer Support

  • I have this door in in a home I bought 2 years ago. Was wondering if you can purchase just one door. 15 1/2 wide 21 7/8 high Thank You can purchase just one cabinet door or any of our producst from CDNM

    We have no minimums and offer free shipping.

    CDNM Customer Support

  • How long does it take to get doors once they are ordered? Naples RTF Raised Square, 9 doors (18 7/16 x 29 7/16)?

    All of our products including cabinet doors, drawer fronts, drawer boxes and our accessories ship within 10 business days...then you need to account for shipping time which is normally 2-3 days.


    CDNM Customer Support

  • Are doors paintable? I need to match the rest of the cabinet with probably acrylic paint.

    Yes, our wood Cabinet Doors are paintable. We recommend that you order Paint Grade Hard Maple or MDF (Medium Density Fiberboard) for any of the cabinet door styles. Both of these cabinet doors offer your the greatest chance for success when wanting to paint cabinet doors. The proper prep work is the key to the success of this project. There are many considerations: cabinets are made out of a variety of materials, offered in a wide range of finishes, from oil-based paints, stains and laminates. You can tackle this project but you'll need the right tools, the right primer, quality paint, and some patience to do the project right and remodel your kitchen without going over budget. White RTF Cabinet Doors are much harder to can be done but we do not recommend it as you might not be happy with the results.   Thanks

    CDNM Customer Support

  • is there a does it matter what side the boring is done it looks like you could just flip if over for LH or RH hinges

    You are correct for this particular cabinet door...if you want to order a square panel replacement Cabinet Doors (slab, recess or raised) you can use LH or RH boring. If you want to to order an arched or cathedral replacement raised panel cabinet door you do have to determine LH or RH for boring.
    CDNM Customer Support

  • Are your Naples RTF white raised panel doors one solid piece, or 5 piece like the other style Naples raised panel wood doors? Thanks in advance for any advice. Pleasant Garden, NC

    Yes, The Naples RTF raised panel Cabinet Doors are one solid piece...For all of our White RTF cabinet doors we use a piece of MDF (Medium Density Fiberboard) that is machine-routed to the raised panel design and then finished with a vacuum-formed, seamless rigid thermo-foil (RTF).  Rigid Thermofoil Cabinet Doors are high quality because they feature seamless construction, a smooth finish, and have color consistency throughout as well as being very easy to maintain and clean.
    CDNM Customer Support

  • Is it possible to get a small sample of the exterior white on the to verify color match . We need a bunch of cabinets but only if we can match the White RTF Raised Square Cabinet Door to our other cabinets in large kitchen located on Marco Island Florida. Thank You

    Yes...We can send you a color swatch of the of the actual White RTF that we use for all of White RTF Cabinet Doors and Drawer Fronts.  If you can supply your name and address we can send that out to you.

    CDNM Customer Support

  • NAPLES RTF RAISED SQUARE CABINET DOOR: This door design matches exactly Looking for a refrigerator cabinet measuring 36W X 12H X 24D do you have? Can I get a color swatch my current cabinets are not bright white maybe eggshell white Thank you Sam Edelman 770 880-3971 Atlanta GA

    We're sorry...we do not manufacture actual kitchen cabinets. We just manufacture and supply replacement Cabinet DoorsDrawer FrontsDrawer Boxes and accessories including mouldings, veneers, end panels and cabinet shelving.

    CDNM Customer Support
